Gears

TOTAL CARTER ENS-EP 700

Lubricant coating for open gears wire ropes.

Applications TOTAL CARTER ENS-EP 700

• open gears rotating at low speed and high power
• ring gears
• racks and guide rails
• wire ropes and chains
• CARTER ENS/EP 700 is made fluid by a volatile solvent to facilitate application (as an aerosol).

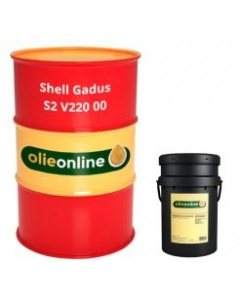

Shell Gadus S2 V220 00 Previous Name: Alvania Grease EP(LF) 00, GL 00, Shell Retinax CS 00

High Performance Multipurpose Extreme Pressure Grease

Shell Gadus S2 V220 00 main applications:

• Steel mill lubrication where a softer grease is necessary for specialised dispensing systems.
• Heavy duty plain and rolling element bearings operating under severe conditions including shock loading in wet environments
• Gearbox applications where semi-fluid greases are required.
• Centralized chassis lubrication systems on trucks and buses.

Total Copal GEP 0

Extreme-pressure water resistant high temperature aluminium complex grease with solid lubricants.

Applications Total Copal GEP 0

• COPAL GEP 0 is pre-eminently designed for use on open gears of rotary drum drives, single and double pinion kiln and mill drives, working under severe circumstances.
• Always avoid contamination of the grease by dust and/or dirt when applying. Preferably use a pneumatic pump/spray system.

TOTAL CERAN CA

Extreme-pressure water resistant high temperature calcium sulfonate complex grease.

Applications TOTAL CERAN CA

• CERAN CA is a heavy duty grease designed for use on slide rails, metal cables, wire ropes, winches, open gears and chains working under severe circumstances.
• CERAN CA is used in cement works, mines and quarries, ports (e.g. travelling cranes) off shore, marine, and other “heavy” industry applications.
• Always avoid contamination of the grease by dust and/or dirt when applying.

Your advantage! Price of TOTAL CERAN CA drops automatically in larger quantities.

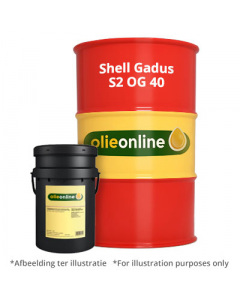

Shell Gadus S2 OG 40 Previous Name: Malleus Grease GL 95

Superior Performance Open Gear Greases

Shell Gadus S2 OG 40 main applications:

• Heavily loaded open gears, particularly those found in grinding mills, kilns, shovels, draglines, ship loaders, stackers and reclaimers and excavator applications. When choosing a product to suit your ambient temperature conditions, always consult with your Shell representative for the appropriate grade.
• Multi-service lubricant that can be used as the one grease (multipurpose and open gear) for the entire machine on most shovels, excavators and draglines (excluding electrical motors bearings).
• Surface dressing of slow moving gears open to the atmosphere.
• Plain bearings, pivot pins/bushings & articulations found in earth moving equipment.
• Mooring, static and slow moving wire ropes including those intermittently immersed in salt water.
• Wide variety of heavy-duty mining and industrial applications.

Please note!! Price of Shell Gadus S2 OG 40 drops automatically in larger quantities.

Shell Gadus S2 OG 50 Previous Name: Malleus Grease GL 205

Superior Performance Open Gear Greases

Shell Gadus S2 OG 50 main applications:

• Heavily loaded open gears, particularly those found in grinding mills, kilns, shovels, draglines, ship loaders, stackers and reclaimers and excavator applications. When choosing a product to suit your ambient temperature conditions, always consult with your Shell representative for the appropriate grade.
• Multi-service lubricant that can be used as the one grease (multipurpose and open gear) for the entire machine on most shovels, excavators and draglines (excluding electrical motors bearings).
• A surface dressing of slow-moving gears open to the atmosphere.
• Plain bearings, pivot pins/bushings & articulations found in earth moving equipment.
• Mooring, static and slow-moving wire ropes including those intermittently immersed in salt water.
• A wide variety of heavy-duty mining and industrial applications

Please note!! Price of Shell Gadus S2 OG 50 drops automatically in larger quantities.

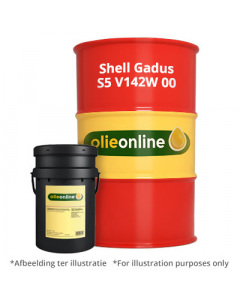

Shell Gadus S5 V142W 00 Previous Name: Tivela Grease GL 00 & Tivela Compound A

Advance Performance Semifluid Gear Grease

Shell Gadus S5 V142W 00 main applications:

• Small industrial gear units
• Worm gears the low steel/tin-bronze frictional characteristics of Shell Gadus S5 V142W make it particularly suitable for worm gears having this combination of alloys.
• Steel/Aluminium-bronze: Shell Gadus S5 V142W is not recommended for the combination steel/aluminium- bronze, for which a grease based on a higher viscosity mineral oil is preferred.
• Flushing and filling with Shell Gadus S5 V142W: is a synthetic polyglycol based lubricant and must not be mixed with mineral oils. Care should be taken when changing over from oil or conventional grease. Flushing with a thin mineral oil will ensure, as far as possible, freedom from solid contaminants and deterioration products resulting from previous use of gear oils or greases. It is important to ensure that none of the flushing oil remains in the gearbox. When refilling the gearbox with Shell Gadus S5 V142W every precaution should be taken to ensure complete cleanliness. For optimum performance from both gearbox and lubricant, only the amount recommended by the gearbox manufacturer should be used.
• Paints. High quality red lead or epoxy resin paints are recommended for use in contact with Shell Gadus S5 V142W, as the synthetic polyglycol component will tend to attack certain conventional paints.
• Seals. Shell Gadus S5 V142W may be used satisfactorily with all normal seal materials. Leather seals are not recommended as the natural fats tend to be removed, leaving the seals thin and brittle.

Shell Gadus S5 V142W is a synthetic, semi-fluid gear lubricant developed to meet the highest requirements of industrial gearboxes allowing long life trouble free operation.

Please note!! Price of Shell Gadus S5 V142W 00 drops automatically in larger quantities.

Shell Naturelle Grease S2 A600P 1.5 previously Naturelle S2 Wirerope lubricant A

Special Purpose Biodegradable Special Application, Wire Rope and Open Gear Lubricant

Application Shell Naturelle Grease S2 A600P 1.5

Wire ropes and cables, fair leads, crane and davit wires Open gears, and low speed plain bearings (less than 500 rpm). Rudder stocks, rudder trunk voids, propeller caps. Dredger bucket wheels. Can be used in a variety of equipment that requires the lubricant to have good water resistance and load carrying ability

CASTROL BioTac MP

Environmentally responsible multipurpose EP grease

Unfortunately no longer available

We recommend this replacement Shell Naturelle Grease S2 A600P 1.5

Application CASTROL BioTac MP

BioTac MPTM has been developed primarily for use on exposed marine deck applications and combines excellent physical properties that enable resistance to both mechanical shear and water spray-off with an additive system developed to protect exposed components from corrosion, oxidation and the effects of load, friction and wear. BioTac MPTM is intended for use in a wide range of applications including plain bearings, wire ropes and open gears typically found in marine mooring and cargo winches. Furthermore, ramp door bearings, pedestal bearings and cargo hatch rollers are also examples of slow/medium speed marine deck applications for which BioTac MPTM is ideally suited. The combination of thickener and base oil technology enables BioTac MPTM to have a broad operating temperature range of between -35C and +125C.

Klüber GRAFLOSCON C-SG 0 ULTRA

Graphite based operational lubricant for open gear drives

Application Klüber GRAFLOSCON C-SG 0 ULTRA

The GRAFLOSCON C-SG ULTRA series was especially developed for the running-in of large open gear drives in rotary kilns, tube mills, dryers, lime kilns, rotary coolers, etc. used in the cement, lime, gypsum, mining, steel, power, paper & pulp and chemical industries. The GRAFLOSCON C-SG ULTRA series may also be used to lubricate and protect slide and guide rails, large chains, wire ropes and similar devices. Further applications are found in sugar and paper production as well as in marine and offshore technology.

TOTAL CERAN GEP

Extreme-pressure water resistant high temperature calcium sulfonate complex grease with solid lubricants.

Applications TOTAL CERAN GEP

• CERAN GEP is pre-eminently designed for use on open gears of rotary drum drives, single and double pinion kiln and mill drives, working under severe circumstances.
• CERAN GEP is particularly adapted for the lubrication of sugar mills (plain bearings, pinions/open gears)
• Always avoid contamination of the grease by dust and/or dirt when applying. Preferably use a pneumatic pump/spray system.

Your advantage! Price of TOTAL CERAN GEP drops automatically in larger quantities.

Klüber GRAFLOSCON C-SG 2000 ULTRA

Operational lubricant for open drives

Application Klüber GRAFLOSCON C-SG 2000 ULTRA

GRAFLOSCON C-SG 2000 ULTRA is designed for spray lubrication of open pinion gears exposed to extremely high tooth flank loads on rotary kilns, tube mills, and line blenders which are used in the cement, lime, gypsum, mining, and chemical industries. GRAFLOSCON C-SG 2000 ULTRA is also suitable for drives exposed to high oscillations or drives in which rolling bearings are mounted. It lubricates and protects all other open gears, drives subject to high thermal loads (spur and bevel gears) as well as slide and guide rails, large chains, wire ropes and similar devices. GRAFLOSCON C-SG 2000 ULTRA is especially suitable for application under hot climatic conditions and in heated spray systems.

Klüber GRAFLOSCON B-SG 00 ULTRA

Running-in lubricant for open drives

Application Klüber GRAFLOSCON B-SG 00 ULTRA

GRAFLOSCON B-SG 00 ULTRA was especially developed for specific running-in of open gears in rotary kilns, tube mills, and line blenders used in the cement, lime, gypsum, mining and
