Heat transfer

Shell Heat Transfer Oil S2 Previous Name: Shell Thermia B

High-Performance Heat Transfer Fluid

Shell Heat Transfer Oil S2 main applications:

• Enclosed circulated heat transfer systems for industrial applications such as process industry, chemical plants, textile producers etc. and in household equipment such as oil filled radiators.
• Shell Heat Transfer Oil S2 can be used in high-temperature continuous heat transfer equipment with the following application limits: Max.
  Bulk temperature: 320oC
  Max. film temperature: 320oC


Shell Heat Transfer Oil S2 is based on carefully selected, highly refined mineral oils chosen for their ability to provide superior performance in indirect closed fluid heat transfer systems.
For open systems we advise you to use an other oil.

Mobil MOBILTHERM 603

Heat transfer Oils

Applications Mobil MOBILTHERM 603

Mobiltherm heat transfer oils are high performance products intended for use in closed indirect heating installations. They are recommended for use in cold-oil sealed, indirect heating and cooling systems in all kinds of industrial processes.

Mobiltherm heat transfer oils are formulated from highly refined base stocks that are resistant to thermal cracking and chemical oxidation. They are very thermally stable and are capable of an extremely long service life without deposit formation or viscosity increase.

Mobiltherm heat transfer oils have good heat transfer efficiency and their viscosities are such that they can be pumped readily at both start-up and operating temperatures. They demonstrate specific heat and thermal conductivities that provide more rapid heat dissipation. The flash points of these oils will not decrease significantly in service because of their resistance to thermal cracking at the operating temperatures for which they are recommended.

TOTAL SERIOLA 32 previously Seriola 1510

Mineral based heat transfer fluid

Applications TOTAL SERIOLA 32

• SERIOLA 32 and 100 are recommended for heat transfer installations using thermal fluid circulation, in open and closed circuits
• SERIOLA 32 and 100 are suitable for heating and temperature control in all industries, and particularly for following manufacturing processes: Steam production, Paper Industry,  Timber Industry, Textile Industry, Oil & Gas

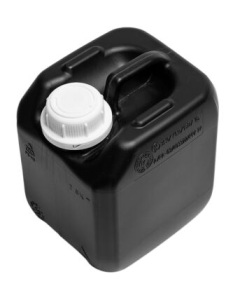

Molyduval Silo D 50

A synthetic special fluid for heat transfer systems intended for high temperatures and open systems.

Main applications of Molyduval Silo D 50 are:

Silicone based lubricating oil with extremely high thermal stability. Compared with other lubricants, it has a very high viscosity index, which means a relatively constant viscosity within a wide temperature range.

The product is crystal clear, extremely good water repellent and resistant to oxidation. Also available in many other viscosity grades.

MOLYDUVAL Celsius A 22

Synthetic heat transfer oil

A synthetic special fluid for heat transfer systems

A synthetic special fluid for low temperature heat transfer systems.

Main applications of MOLYDUVAL Celsius A 22 are:

• + Closed heat transfer system due to fluid circulation in industrial applications
• + Minimum mass temperature in a closed system of liquid: -50 ° C
• + Maximum mass temperature in a closed system of liquid: 120 ° C & nbsp;

MOLYDUVAL Celsius A 22 is based on PAOs, so that a lower temperature can be achieved than with mineral thermal oil.

FM HEAT TRANSFER FLUID 32

Heat transfer fluid for use in food manufacturing industry

FM HEAT TRANSFER FLUID 32 main applications:

• Heat transfer systems with a bulk oil temperature range of approximately -10 °C to max. +325 °C where the surface temperature of the heating elements (oil fi lm temperature) should not exceed +340 °C.

FM HEAT TRANSFER FLUID is designed for closed circuit and pressureless heat transfer systems. It is based on a careful blend of highly refi ned oils and additives chosen for their ability to meet the stringent requirements of the food industry.

Your advantage! Price of FM HEAT TRANSFER FLUID 32 drops automatically in larger quantities.

Q8 Gluck M

Advanced heat transfer oil

Applications Q8 Gluck M

Q8 Gluck M is used in closed heat transfer systems operating at bulk temperatures of max 330°C.

Your advantage! Price of Q8 Gluck M drops automatically in larger quantities.

Renolin Therm 380S

Synthetic Heat Transfer Fluid

Renolin Therm 380S field of applications:

RENOLIN THERM 380 S is optimally suited for use in the indirect heating of reactors, polymerization tanks and distillation columns, processing machines and driers, as well as heat exchangers in processing plants and in systems for heat recovery. The heat transfer fluid is best used at temperatures ranging from 250 to 340°C. The upper limit for use is an inlet temperature of 350°C. The film temperature should not exceed 380°C.

Please note!! Price of Renolin Therm 380S drops automatically in larger quantities.

Castrol Perfecto HTS 16

Synthetic heat transfer fluid

Application Castrol Perfecto HTS 16

Perfecto HTS 16 is suitable for heat transfer systems without pressure operating in liquid phase with bulk temperatures up to 350°C, where the film temperature may not exceed 370°C. In order to extend the economic life of the liquid, the temperature of the expansion vessel must be kept below 50°C. The temperature of the expansion vessel must be kept at a maximum of 370°C. At higher temperatures it is advisable to use a nitrogen blanket. Detailed information can be found in the brochure which contains data on specific heat and thermal conductivity, among other things.

Your advantage! Price of Castrol Perfecto HTS 16 drops automatically in larger quantities.

Castrol Perfecto HTS 16

Synthetic heat transfer fluid

Application Castrol Perfecto HTS 16

Perfecto HTS 16 is suitable for heat transfer systems without pressure operating in liquid phase with bulk temperatures up to 350°C, where the film temperature may not exceed 370°C. In order to extend the economic life of the liquid, the temperature of the expansion vessel must be kept below 50°C. The temperature of the expansion vessel must be kept at a maximum of 370°C. At higher temperatures it is advisable to use a nitrogen blanket. Detailed information can be found in the brochure which contains data on specific heat and thermal conductivity, among other things.

Your advantage! Price of Castrol Perfecto HTS 16 drops automatically in larger quantities.
